102x76x3mm Grade 14 Satin Stainless Steel Anti – Ligature Hinge | Door Hinge Hardware – Heavy – Duty, Smooth Action (14999)
SKU: 14999
£11.93 ex. VAT | £14.32 inc. VAT
High-quality Eclipse door hinge for smooth, reliable operation.
Bulk Discounts
| Qty | Discount |
|---|---|
| 1–9 | Base price |
| 10+ | Extra 5% off |
| 25+ | Extra 7.5% off |
| 50+ | Extra 10% off |
| 100+ | Extra 12.5% off |
Available on back-order
Secure checkout • All major cards accepted
Need help? Call us on 01508-531999
⭐ Eclipse Grade 14 Stainless Steel Thrust Bearing Hinge: Ultimate Strength & Fire Safety
The Eclipse Grade 14 Thrust Bearing Hinge is a premium, heavy-duty door hinge engineered for demanding, high-traffic environments where maximum security, exceptional durability, and uncompromising fire safety are paramount.
Manufactured from high-quality stainless steel, this hinge is designed to carry doors up to an impressive 160 kg, making it suitable for large, heavy-duty timber and steel doors.
💪 Performance, Strength & Certification Highlights
This hinge is built to exceed industry standards, offering you total peace of mind:
| Standard | Detail | Benefit |
| Grade 14 | 160 kg Maximum Door Mass | Designed for extremely heavy doors in high-frequency applications, ensuring smooth operation for years. |
| BS EN 1935 Tested | 200,000 Cycles to Grade 14 | Certified for long-term, reliable performance even under continuous, rigorous use. |
| Thrust Bearing Mechanism | Superior Operation | Reduces friction, allowing heavy doors to swing effortlessly and quietly. |
| Certifire CF336 | Full Fire Rating | Independently certified for use on: FD30, FD60, FD90, FD120 minute timber doors, and FD240 minute steel doors. |
| CE & UKCA Marked | Guaranteed Compliance | Meets the latest European (CE 2812) and UK (UKCA 1121) regulatory requirements for construction products. |
📏 Technical Specifications
- Material: High-Quality Stainless Steel
- Dimensions: 102x76x3xmm
- Corners: 10mm Radius Corners (Standard for quick router installation)
- Hinge Gauge: 12 Gauge (3mm thick)
- Screw Holes: Countersunk for a flush, professional finish.
🏢 Ideal Applications
- High-traffic public buildings (hospitals, schools, universities)
- Heavy commercial or industrial doors
- Fire-rated doors requiring maximum compliance and safety9
- Large or heavy custom timber doors
This hinge is a professional-grade choice for projects that demand the very best in security and longevity.
You may also like…
102x51x102mm Steel Butt Parliament Hinge PBP | Door Hinge Hardware – Heavy – Duty, Smooth Action, Polished Brass (14721)

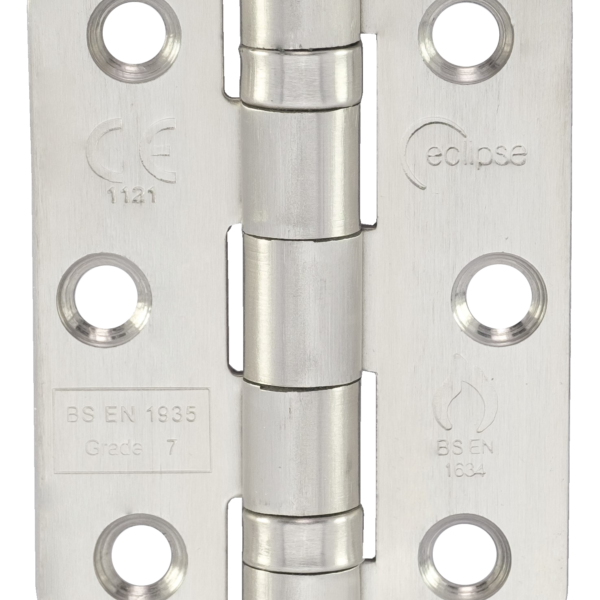

76x51mm Grade 7 Stainless Steel Radius Ball Bearing Hinge SSS | Door Hinge Hardware – Heavy – Duty, Ball Bearing, Satin Stainless Steel (14905)

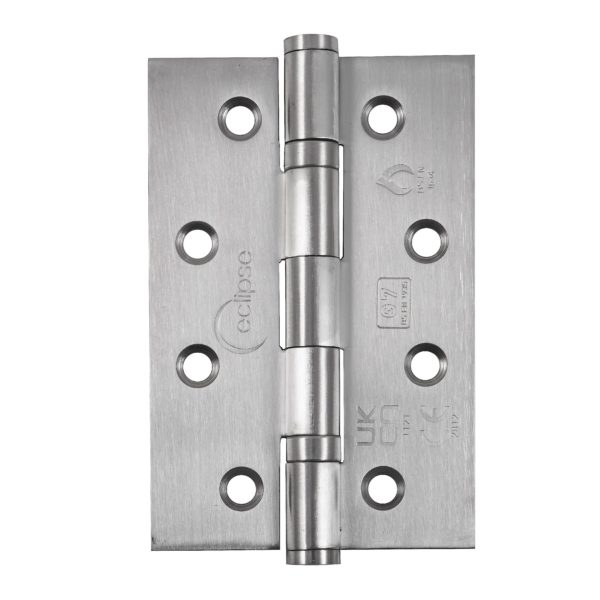

Grade 7 Stainless Steel Slim Knuckle Ball Bearing Hinge 102x67x2mm SSS | Door Hinge Hardware – Heavy – Duty, Ball Bearing, Satin Stainless Steel (14341)
