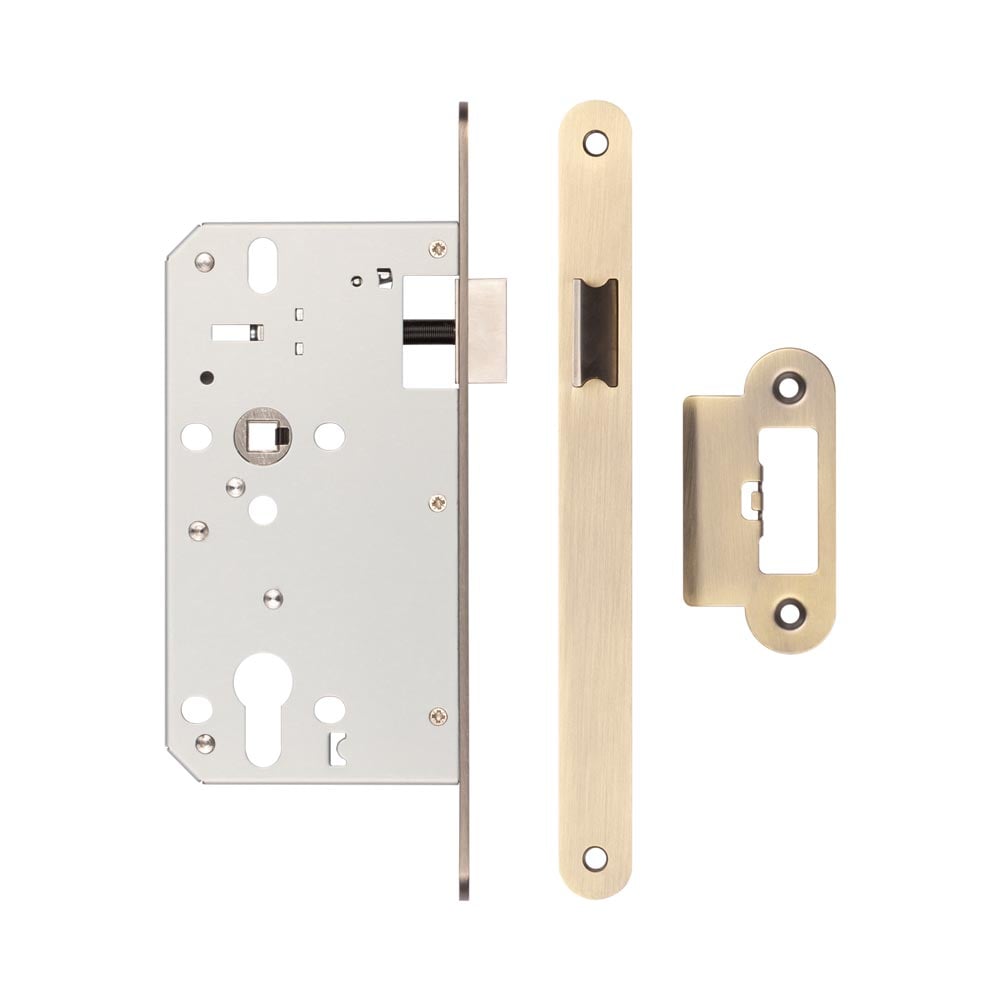

72mm Antique Brass Din Euro Latch Radiused 60mm Backset
SKU: JL-DL60RAB
£20.14 ex. VAT | £24.17 inc. VAT
Bulk Discounts
| Qty | Discount |
|---|---|
| 1–9 | Base price |
| 10+ | Extra 5% off |
| 25+ | Extra 7.5% off |
| 50+ | Extra 10% off |
| 100+ | Extra 12.5% off |
Secure checkout • All major cards accepted
Need help? Call us on 01508-531999
The Frelan JL-DL60R Latch is a stainless steel tubular latch case for lever handles on internal and commercial doors. With FD30/60 fire rating and Certifire approval, it’s a specification-ready choice with square or radius forend options.
Material Grade: 304 Stainless SteelFinish: Antique BrassForend Options: Square (JL-DL60AB) / Radius (JL-DL60RAB)Sprung: YesFire Rating: FD30/60Certifire: YesBS EN 12209: YesUKCA / CE Marked: YesCorrosion Grade: 3Mechanical Warranty: 15 YearsUse: Internal / External (Residential / Commercial)Suitable Door Thickness: 35–54mm
DIMENSIONS
Case Height: 235mmBackset: 60mmForend Width: 22mmForend Height: 145mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)STANDARDS & CERTIFICATIONS
Product Specifications
- Material: Stainless Steel
- Finish: Antique Brass
- Size: 165 x 90mm
Technical Resources
Download Technical Data Sheet (PDF)
The M Brock Standard: Professional architectural ironmongery. Always request a sample before custom drilling.
| Weight | 0.71 kg |
|---|
