Name: 72mm Dark Bronze Din Euro Deadlock Radiused 60mm Backset
SKU: JL-DD60RDB
Availability: InStock

72mm Dark Bronze Din Euro Deadlock Radiused 60mm Backset

SKU: JL-DD60RDB

£20.14 ex. VAT | £24.17 inc. VAT

💷 Buy 10+ and save £1.01 per unit

Bulk price: £19.13 each when buying 10+

🚚 UK nationwide delivery • 📦 Bulk order friendly

🔧 Trade customer? Contact us about trade accounts

Bulk Discounts

Qty	Discount
1–9	Base price
10+	Extra 5% off
25+	Extra 7.5% off
50+	Extra 10% off
100+	Extra 12.5% off

Secure checkout • All major cards accepted

Need help? Call us on 01508-531999

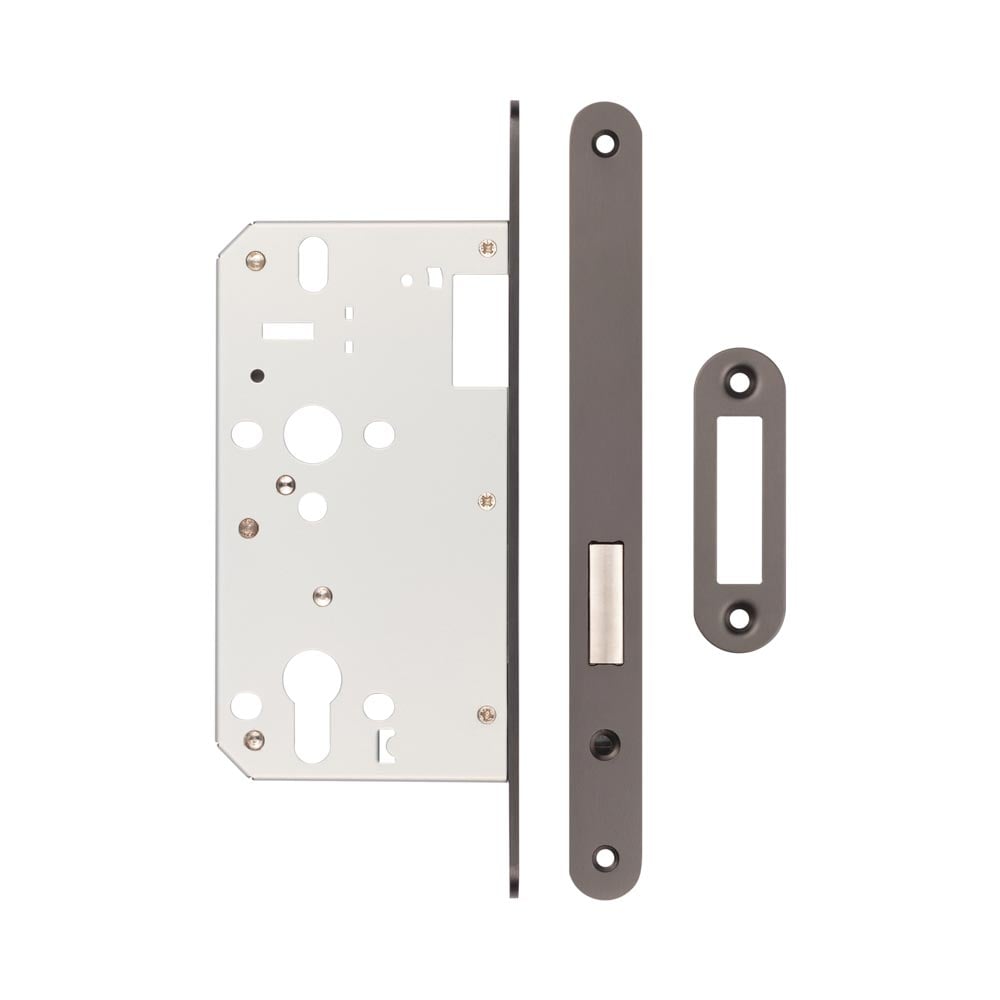

The Frelan JL-DD60R Deadlock is a robust stainless steel deadlock for high-traffic doors. It carries FD30/60 fire rating and Certifire approval, making it a reliable choice for commercial specifications. Available with square or radius forend plates.

Material Grade: 304 Stainless SteelFinish: Dark BronzeForend Options: Square (JL-DD60DB) / Radius (JL-DD60RDB)Sprung: YesFire Rating: FD30/60Certifire: YesBS EN 12209: YesUKCA / CE Marked: YesCorrosion Grade: 3Mechanical Warranty: 15 YearsUse: Internal / External (Residential / Commercial)Suitable Door Thickness: 35–54mm

DIMENSIONS

Case Height: 235mmBackset: 60mmForend Width: 22mmForend Height: 145mm

Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.

To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)STANDARDS & CERTIFICATIONS

Product Specifications

Material: Stainless Steel
Finish: Dark Bronze
Size: 165 x 90mm

Technical Resources

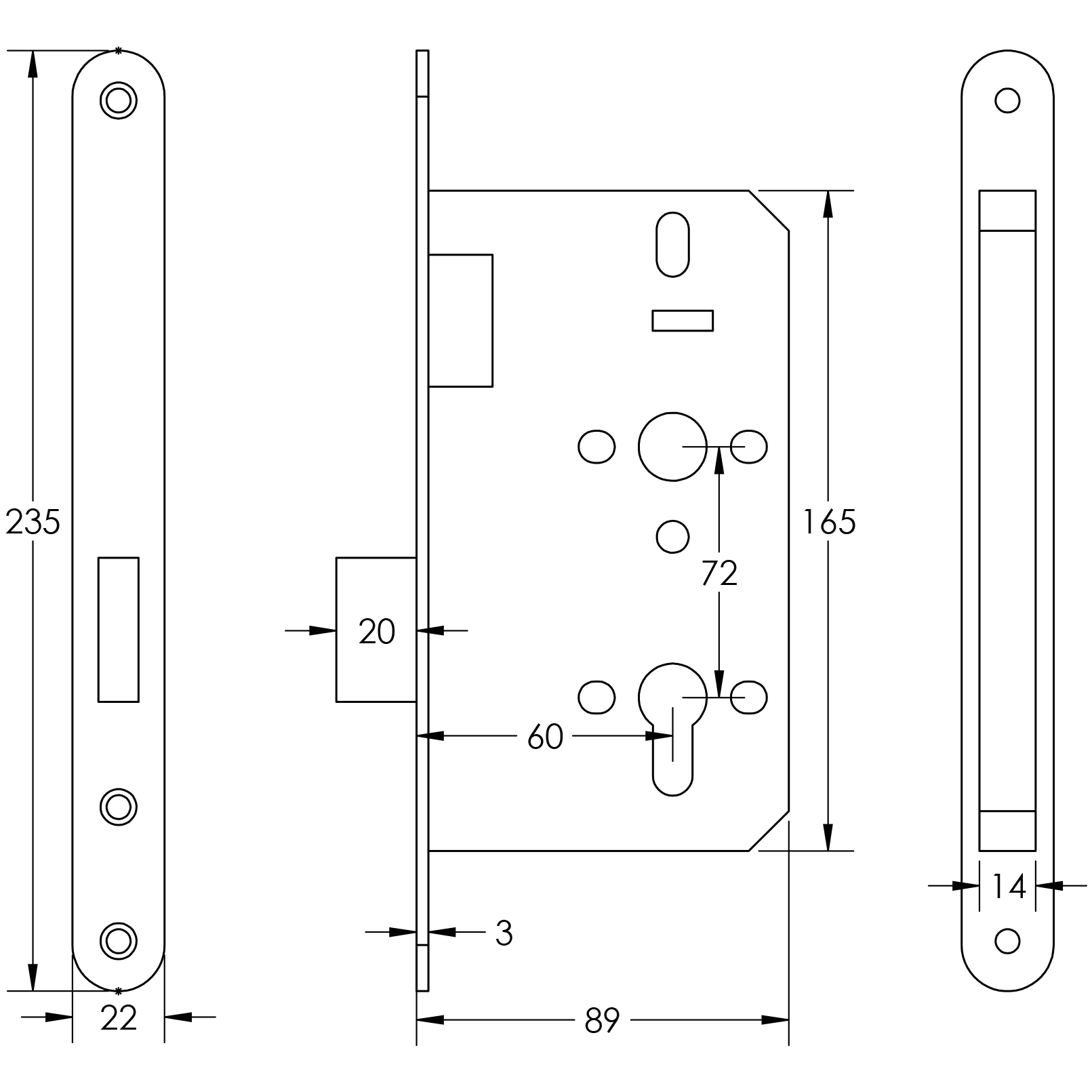

Technical Drawing JL-DD60RDB

Download Technical Data Sheet (PDF)

The M Brock Standard: Professional architectural ironmongery. Always request a sample before custom drilling.
