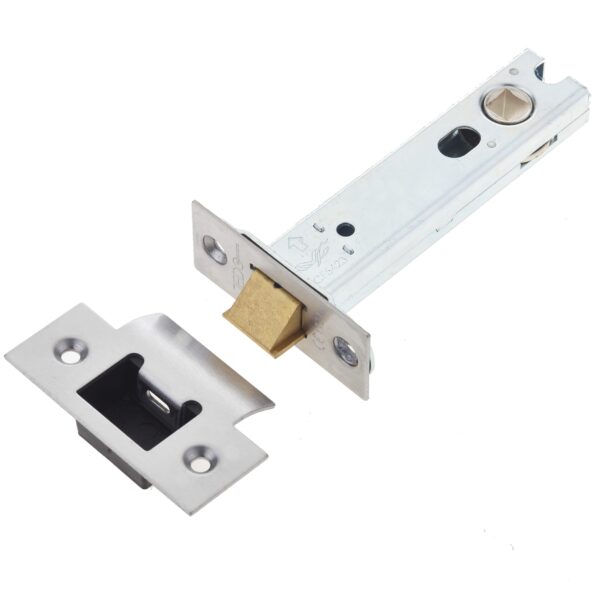

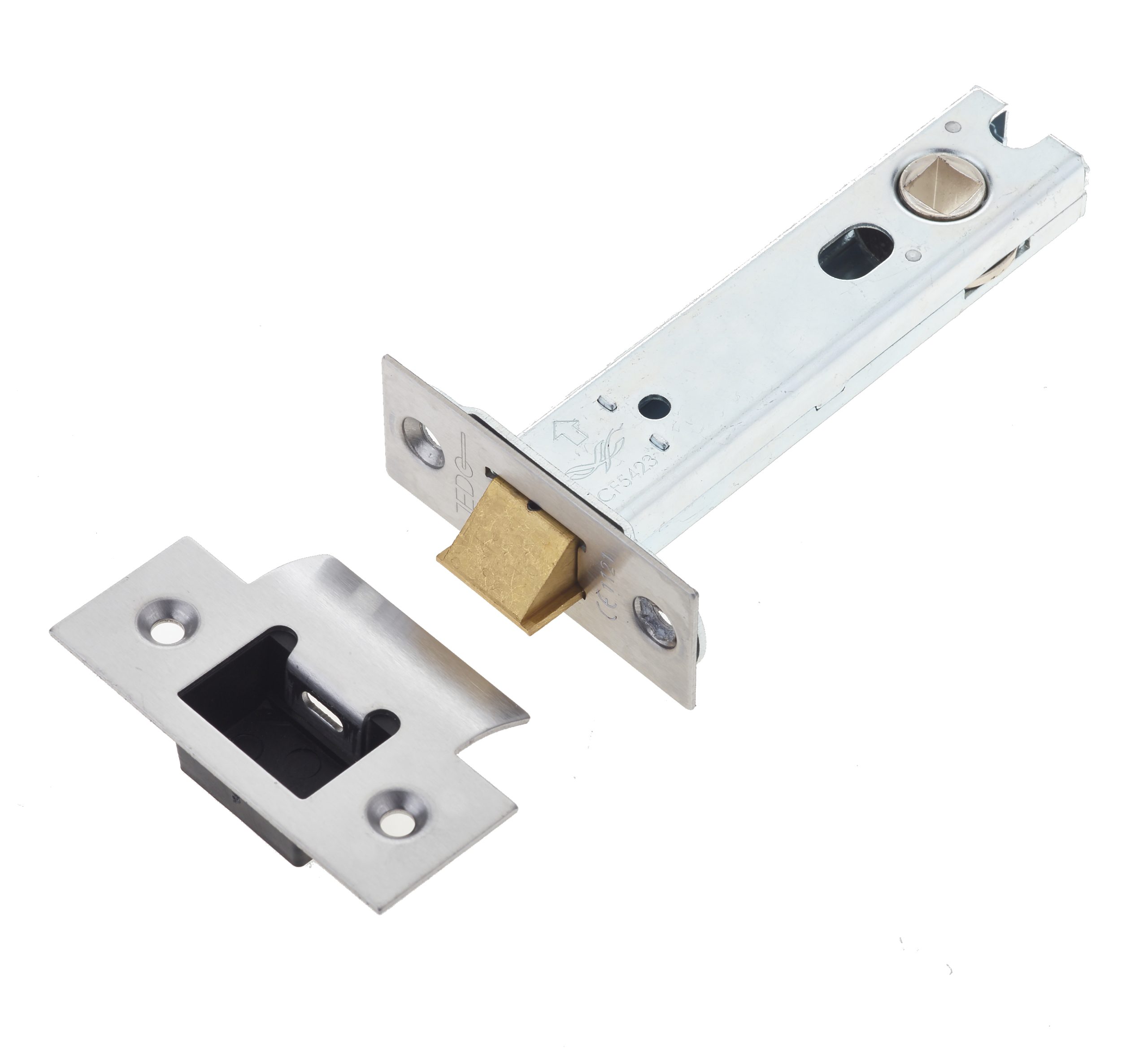

Jedo Heavy Duty Tubular Latches – 45 Degree Short Travel 102mm Satin Stainless Steel

• A heavy
• duty tubular latch is a robust locking mechanism used to secure doors in high
• traffic or heavy
• use areas. Unlike a standard latch, it’s built with stronger materials and components to withstand frequent operation and greater force. The latch fits into a cylindrical hole drilled into the edge of the door (hence “tubular”), and it’s typically used in conjunction with lever handles or door knobs.
KEY FEATURES:
• Case Type: Heavy Duty Tubular Latch Forend: Square (SS) Material Grade: 201 Stainless Steel
• Finish: Satin Stainless Steel Sprung: Yes Fire Rating: FD30/60 Certifire: Yes BS EN 12209: Yes UKCA / CE: Yes / Yes Corrosion Grade: 3 Mechanical Warranty: 15 Years
USE:

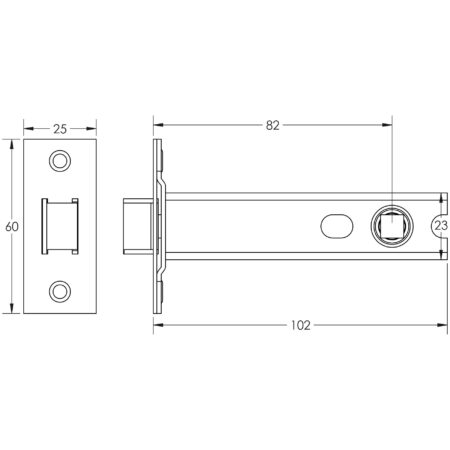

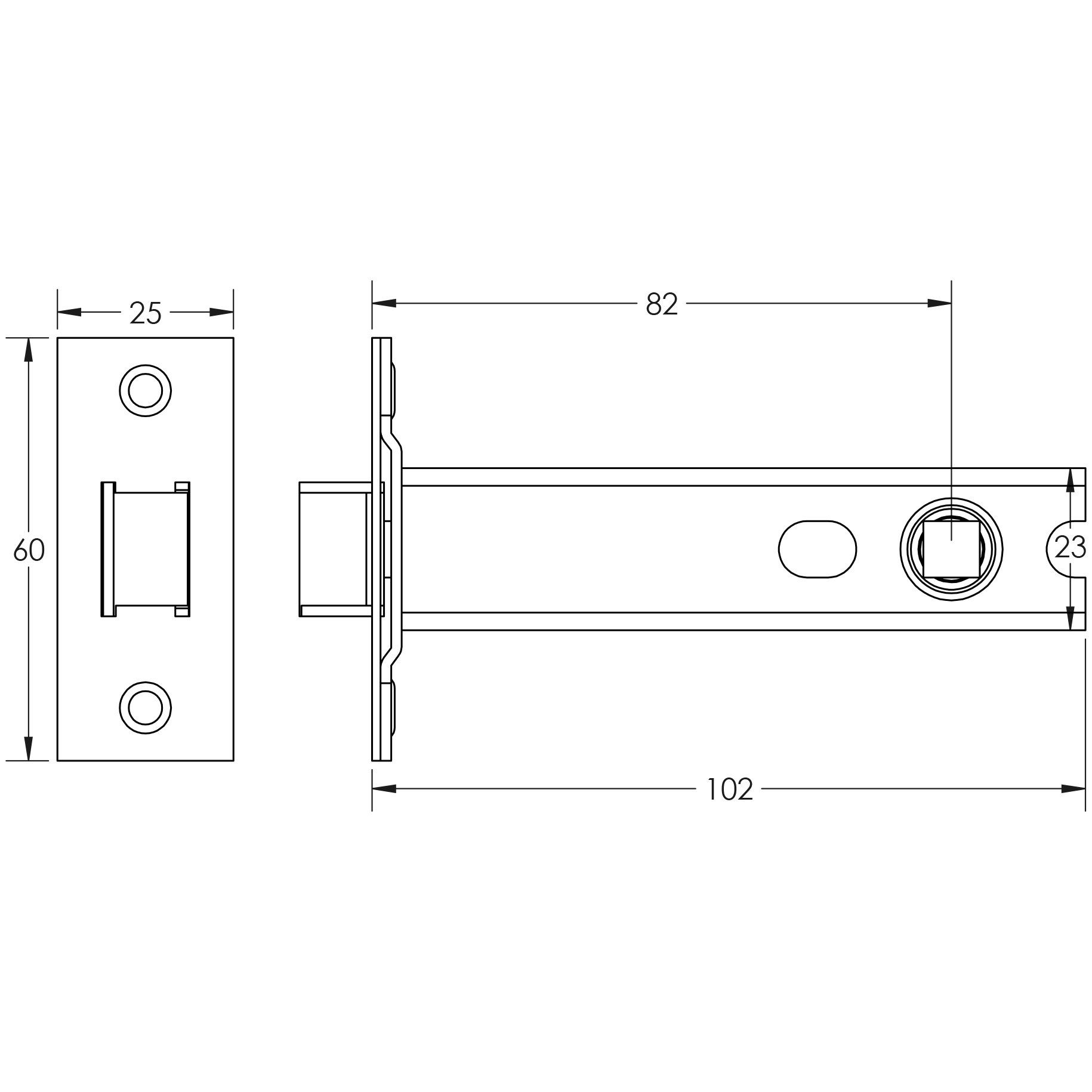

• Internal / External (Residential / Commercial) Suitable Door Thickness: 35–54mm Fixings: 4 x wood screws DIMENSIONS Case Length: 102mm Backset (to spindle): 45mm To maintain compliance with the fire standard for this latch, it is recommended that you fit these with the relevant intumescent pack (GRA 16 & GRA 16.2) Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing. STANDARDS & CERTIFICATIONS.
